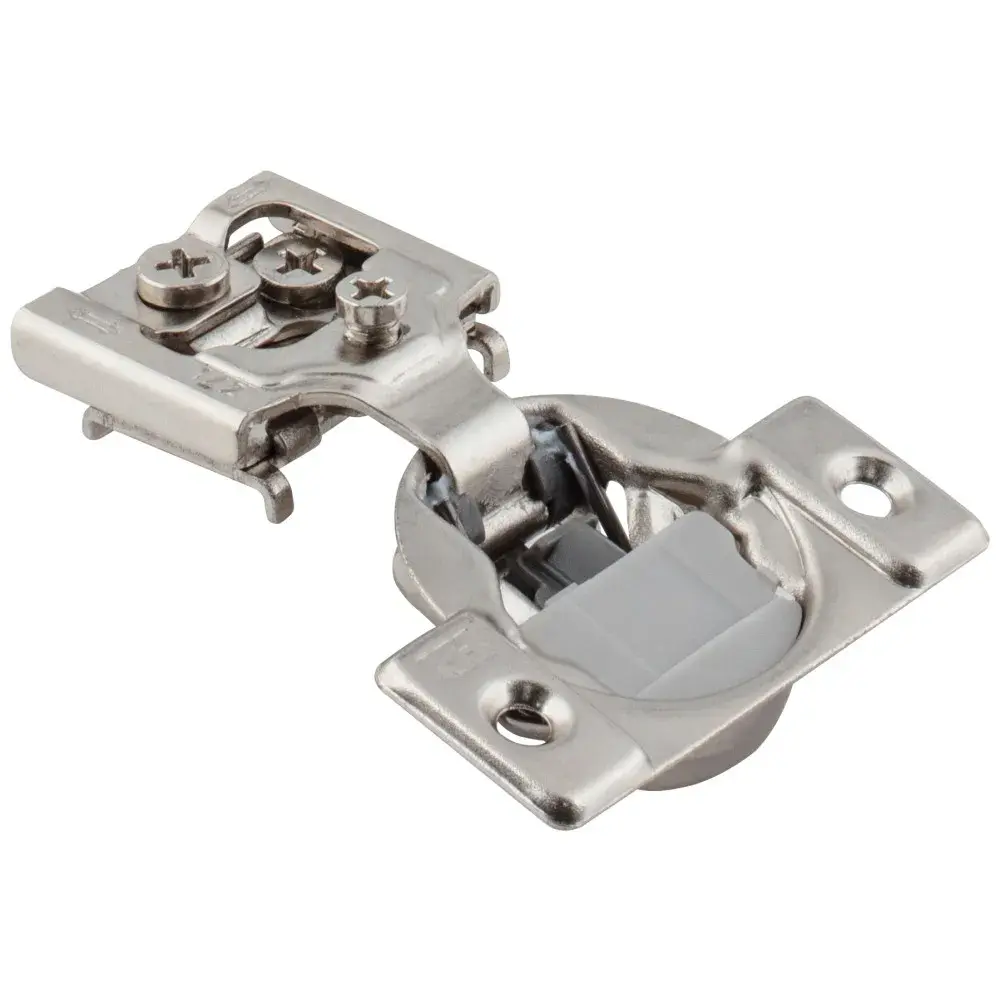

105° 1/2" Overlay Heavy Duty DURA-CLOSE® Soft-close Compact Hinge without Dowels
DESCRIPTION
Streamlined glide channels reduce friction and wear
Tested and proven soft-close mechanism will last the life of the hinge
Use in conjuction with 8390 Series hinges on lighter doors
Grade 2 ANSI/BHMA certified to 50,000 cycles and 6-way adjustability
More Info
Details
Details
Item Number
9390
Closing
Soft-close
Hinge Cup Bore Depth
11.2 mm
Hinge Type
Compact
Mount Centers
45 mm
Type
Faceframe
Pivot Type
Single
ADA
No
Degree of Opening
105°
Overlay
1/2"
Hinge Dowels
Without
Overlay Adjustment
+2 mm, -2 mm
Adjustment Type
Cam
Brand
HR Max
Series
9390 Series
Finish
Nickel
Hinge Cup Diameter
35 mm
Material
Steel
Certification
ANSI/BHMA A156.9-2010, ANSI/KCMA A161.1-2012
Installation
Screw
Mount Type
Screw
Warranty Period
Limited Lifetime
Feature
FEATURES
Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
One piece compact assembly with vertical screw adjustment and horizontal and depth cam adjustment
For face frame applications
Single pivot point
Compatible with 8390 Series self-close hinges
#7 x 5/8" pan washer head screw recommended for installation (item # 7X0580WCQ)
